UD-USC1¶
アイ・オー・データ機器社製UD-USC1の設定手順例です。 機器の詳細は、 アイ・オー・データ機器社ホームページ をご確認ください。
設定手順¶

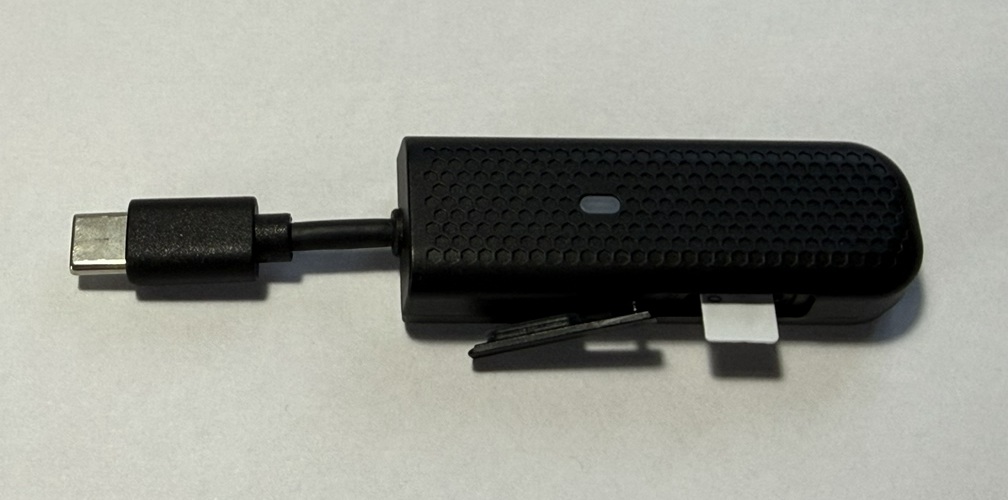

- UD-USC1にSIMカードを挿入します。

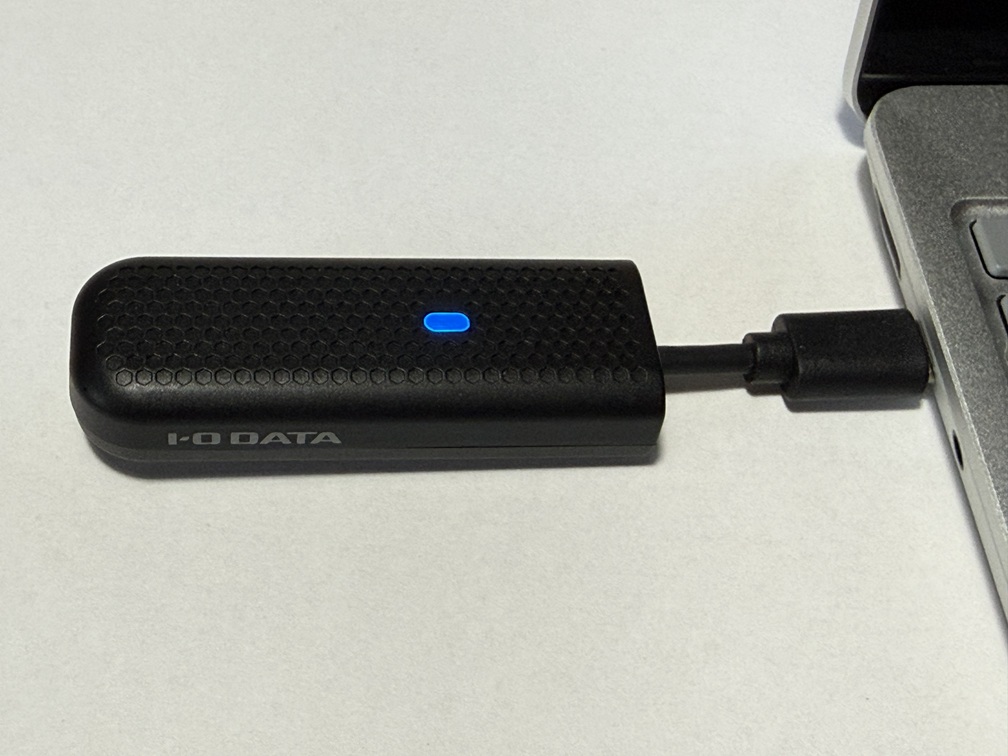

- USBポートにUD-USC1を装着します。APNが自動設定され、LEDが赤色から青色に変わります。LEDが青色点灯に変われば、基地局への接続完了です。
注釈
IoT Connect Mobile Type S ご利用の場合、APNが自動設定されます。
APNが自動設定されない場合は、後述するAPN手動設定やファームウェアのバージョンアップなどを実施ください。

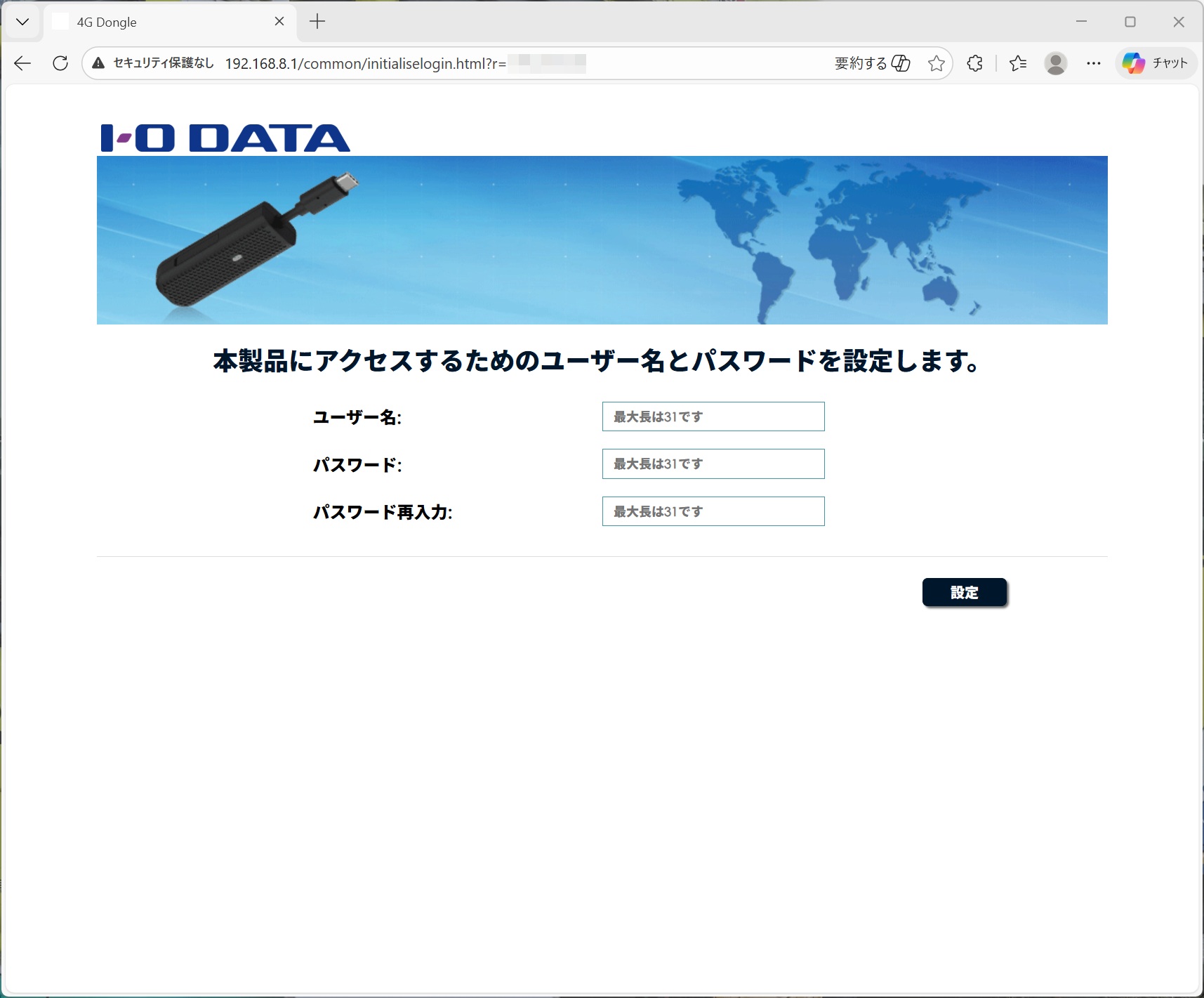

- UD-USC1の詳細情報を参照するには、Webブラウザで以下のURLにアクセスし、ポータルに接続します。初回接続時には、ユーザー名、パスワードの設定画面が表示されます。
http://192.168.8.1/
注釈
2回目以降は、表示されません。

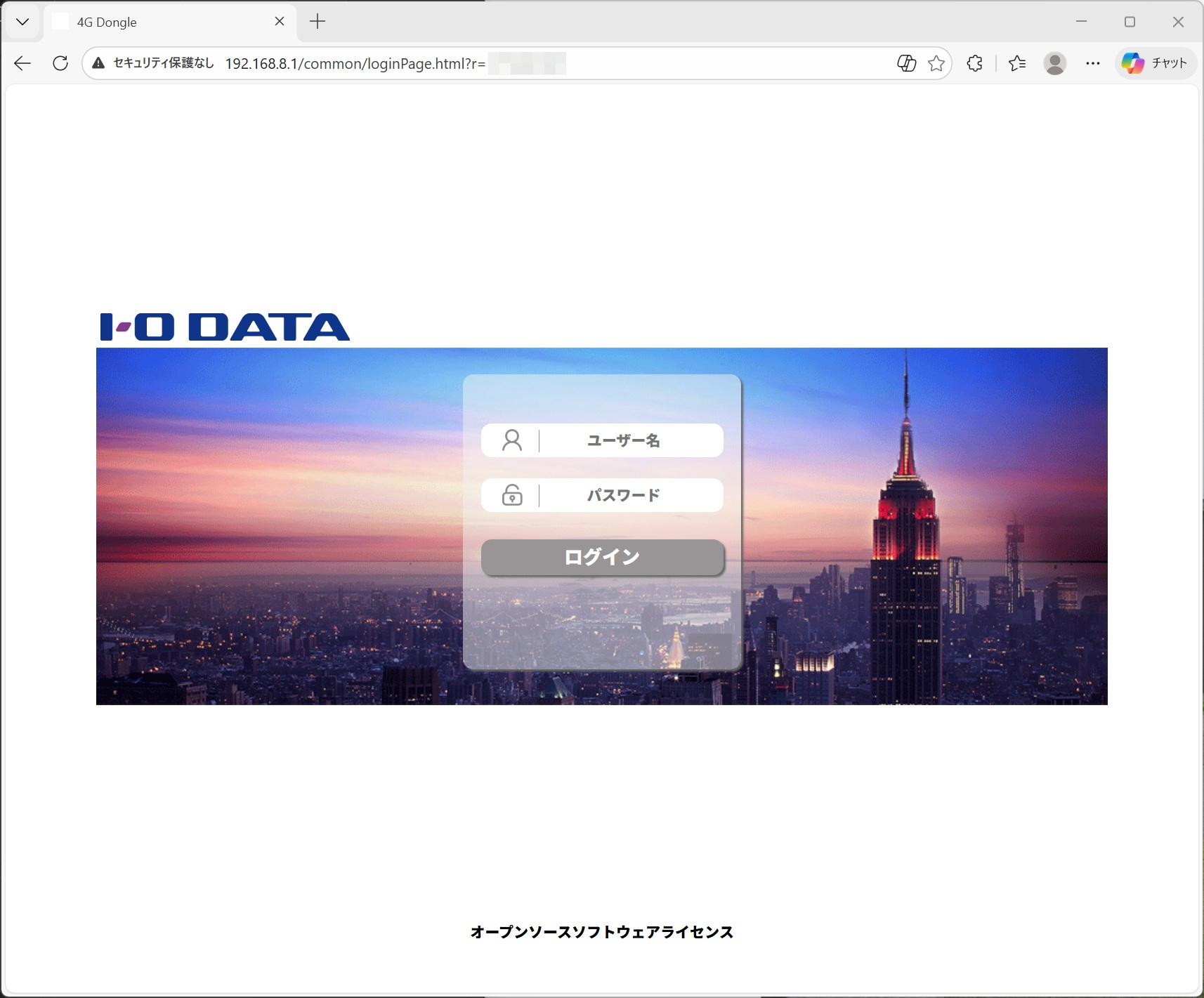

- ログイン画面が表示されますので、設定したユーザー名、パスワードを入力し、ログインします。

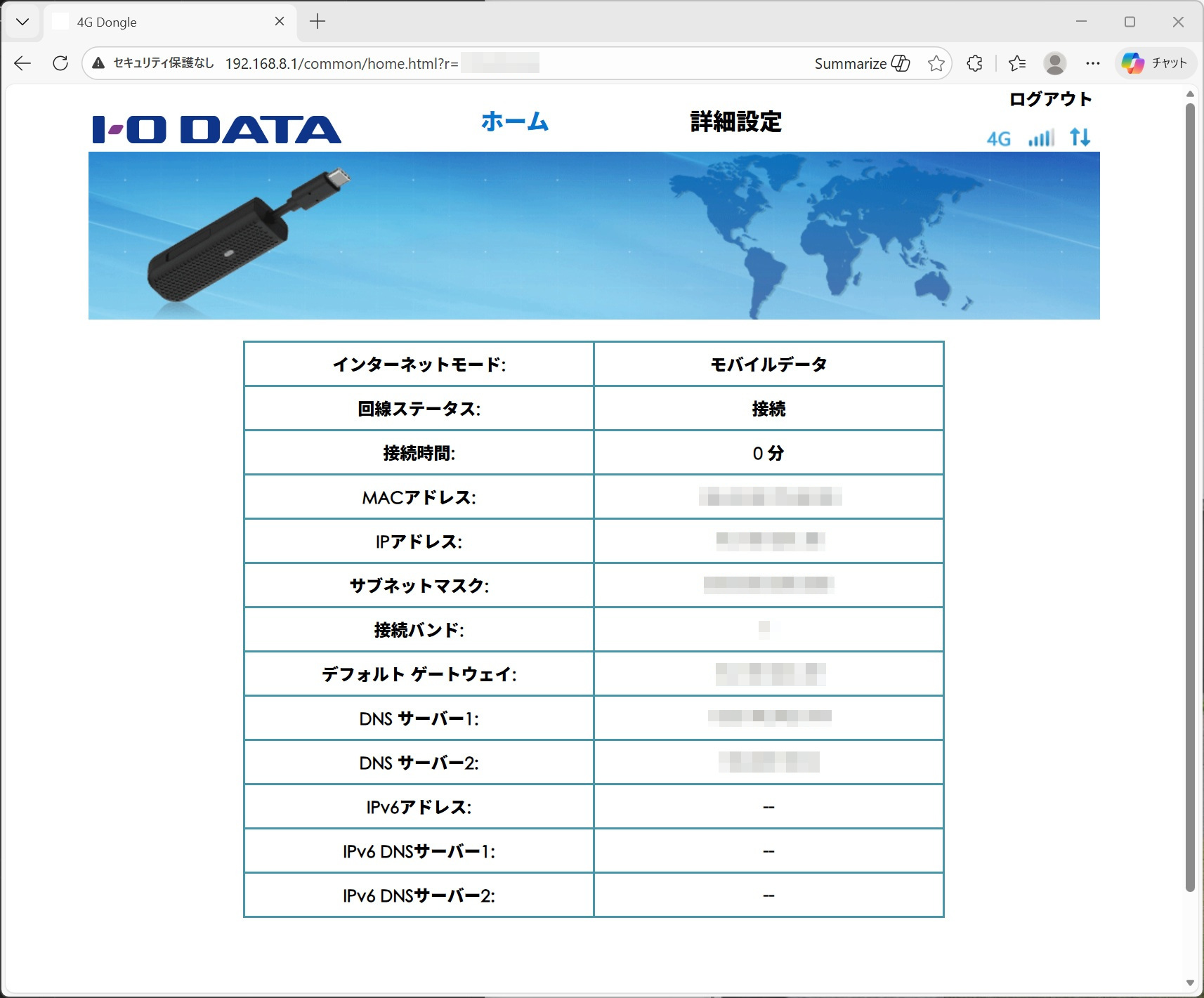

- UD-USC1の接続情報が表示されます。
- APNが自動設定されず、LEDが青色点灯に変わらない場合は、UD-USC1のポータルに接続し、「詳細設定」＞「インターネット」＞「4G」を選択し、「キャリア名」、「APN」を手動設定します。
注釈
自動的にAPNが設定され、LEDが青色点灯し、セルラー接続が確立していれば、本手順は不要です。
Terminal Profile¶
カテゴリー |
パラメーター |
値 |
|---|---|---|
Terminal Profile Byte 1 (Download) |
Profile Download |
Supported |
SMS-PP Data Download |
Supported |
|
CB Data Download |
Supported |
|
Menu Selection |
Supported |
|
SMS-PP data download is supported |
Yes |
|
Timer expiration |
Supported |
|
Call Control by USIM is supported |
No |
|
Call Control by USIM is supported |
No |
|
Terminal Profile Byte 2 (Other) |
Command result |
Supported |
Call Control by USIM |
Not supported |
|
Call Control by USIM is supported |
No |
|
MO SMS control by SIM |
Supported |
|
Call Control by USIM is supported |
No |
|
UCS2 Entry |
Supported |
|
UCS2 Display |
Supported |
|
Display of Extension Text |
Supported |
|
Terminal Profile Byte 3 (Proactive SIM) |
Proactive SIM: DISPLAY TEXT |
Supported |
Proactive SIM: GET INKEY |
Supported |
|
Proactive SIM: GET INPUT |
Supported |
|
Proactive SIM: MORE TIME |
Supported |
|
Proactive SIM: PLAY TONE |
Not supported |
|
Proactive SIM: POLL INTERVAL |
Supported |
|
Proactive SIM: POLLING OFF |
Supported |
|
Proactive SIM: REFRESH |
Supported |
|
Terminal Profile Byte 4 (Proactive SIM) |
Proactive SIM: SELECT ITEM |
Supported |
Proactive SIM: SEND SHORT MESSAGE |
Supported |
|
Proactive SIM: SEND SS |
Supported |
|
Proactive SIM: SEND USSD |
Supported |
|
Proactive SIM: SET UP CALL |
Not supported |
|
Proactive SIM: SET UP MENU |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (NMR) |
Not supported |
|
Terminal Profile Byte 5 (Event driven information) |
Proactive SIM: SET UP EVENT LIST |
Supported |
Event: MT call |
Not supported |
|
Event: Call connected |
Not supported |
|
Event: Call disconnected |
Not supported |
|
Event: Location status |
Supported |
|
Event: User activity |
Not supported |
|
Event: Idle screen available |
Not supported |
|
Event: Card reader status |
Not supported |
|
Terminal Profile Byte 6 (Event driven information extension) |
Event: Language Selection |
Supported |
Event: Browser Termination |
Not supported |
|
Event: Data Available |
Supported |
|
Event: Channel Status |
Supported |
|
Event: Access Technology Change |
Supported |
|
Event: Display parameters changed |
Not supported |
|
Event: Local Connection |
Not supported |
|
Event: Network Search Mode Change |
Supported |
|
Terminal Profile Byte 7 (Multiple card proactive commands) |
Proactive SIM: POWER ON CARD |
Not supported |
Proactive SIM: POWER OFF CARD |
Not supported |
|
Proactive SIM: PERFORM CARD APDU |
Not supported |
|
Proactive SIM: GET READER STATUS (status) |
Not supported |
|
Proactive SIM: GET READER STATUS (identifier) |
Not supported |
|
Terminal Profile Byte 8 (Proactive SIM) |
Proactive SIM: TIMER MANAGEMENT (start, stop) |
Supported |
Proactive SIM: TIMER MANAGEMENT (get current value) |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (date, time, tz) |
Supported |
|
Proactive SIM: GET INKEY |
Supported |
|
Proactive SIM: SET UP IDLE MODE TEXT |
Not supported |
|
Proactive SIM: RUN AT COMMAND |
Not supported |
|
Proactive SIM: SETUP CALL |
Not supported |
|
Proactive SIM: Call Control by USIM is supported |
No |
|
Terminal Profile Byte 9 |
DISPLAY TEXT |
Supported |
SEND DTMF command |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (NMR) |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (language) |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (Timing Advance) |
Not supported |
|
Proactive SIM: LANGUAGE NOTIFICATION |
Supported |
|
Proactive SIM: LAUNCH BROWSER |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (Access Technology) |
Supported |
|
Terminal Profile Byte 10 (Soft keys support) |
Soft keys support for SELECT ITEM |
Supported |
Soft Keys support for SET UP MENU |
Supported |
|
Terminal Profile Byte 11 (Soft keys information) |
Maximum number of soft keys available |
0 |
Terminal Profile Byte 12 (Bearer Independent protocol proactive commands, class "e") |
Proactive SIM: OPEN CHANNEL |
Supported |
Proactive SIM: CLOSE CHANNEL |
Supported |
|
Proactive SIM: RECEIVE DATA |
Supported |
|
Proactive SIM: SEND DATA |
Supported |
|
Proactive SIM: GET CHANNEL STATUS |
Supported |
|
Proactive SIM: SERVICE SEARCH |
Not supported |
|
Proactive SIM: GET SERVICE INFORMATION |
Not supported |
|
Proactive SIM: DECLARE SERVICE |
Not supported |
|
Terminal Profile Byte 13 (Bearer Independent protocol supported bearers, class "e") |
CSD bearer |
Not supported |
GPRS bearer |
Supported |
|
Bluetooth bearer |
Not supported |
|
IrDA bearer |
Not supported |
|
RS232 bearer |
Not supported |
|
Number of Channels |
7 |
|
Terminal Profile Byte 14 (Screen height) |
Display height (chars) |
0 |
No display capability |
Not supported |
|
No keypad available |
Not supported |
|
Screen sizing parameters |
Not supported |
|
Terminal Profile Byte 15 (Screen width) |
Display width (chars) |
0 |
Variable size fonts |
Not supported |
|
Terminal Profile Byte 16 (Screen effects) |
Display resize |
Not supported |
Text Wrapping |
Not supported |
|
Text Scrolling |
Not supported |
|
Text Attributes |
Not supported |
|
Width reduction when in menu |
0 |
|
Terminal Profile Byte 17 (Bearer independent protocol supported transport interface/bearers, class "e") |
TCP client mode remote connection |
Supported |
UDP client mode remote connection |
Supported |
|
TCP server mode |
Not supported |
|
TCP client mode local connection |
Not supported |
|
UDP client mode local connection |
Not supported |
|
Direct communication channel |
Not supported |
|
E-UTRAN bearer |
Supported |
|
HSDPA bearer |
Supported |
|
Terminal Profile Byte 18 (Bearer independent protocol) […] |
Proactive SIM: DISPLAY TEXT (Variable Time out) |
Supported |
Proactive SIM: GET INKEY (help is supported) |
Supported |
|
USB bearer |
Not supported |
|
Proactive SIM: GET INKEY (Variable Timeout) |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (ESN) |
Not supported |
|
CALL CONTROL on GPRS |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (IMEISV) |
Supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (Search Mode change) |
Supported |
|
Terminal Profile Byte 19 (TIA/EIA-136-C facilities) |
TIA/EIA Version |
0 |
Terminal Profile Byte 20 (TIA/EIA/IS-820-A facilities) |
- |
- |
Terminal Profile Byte 21 (Extended Launch Browser Capability) |
WML |
Not supported |
XHTML |
Not supported |
|
HTML |
Not supported |
|
CHTML |
Not supported |
|
Terminal Profile Byte 22 |
UTRAN PS with extended parameters |
Not supported |
Proactive SIM: PROVIDE LOCAL INFORMATION (battery state) |
Not supported |
|
Proactive SIM: PLAY TONE (Melody tones and Themed tones supported) |
Not supported |
|
Multi-media Calls in SET UP CALL |
Not supported |
|
Toolkit-initiated GBA |
Not supported |
|
Proactive SIM: RETRIEVE MULTIMEDIA MESSAGE |
Not supported |
|
Proactive SIM: SUBMIT MULTIMEDIA MESSAGE |
Not supported |
|
Proactive SIM: DISPLAY MULTIMEDIA MESSAGE |
Not supported |
|
Terminal Profile Byte 23 |
Proactive SIM: SET FRAMES |
Not supported |
Proactive SIM: GET FRAMES STATUS |
Not supported |
|
MMS notification download |
Not supported |
|
Alpha Identifier in REFRESH command |
Not supported |
|
Geographical Location Reporting |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (MEID) |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (NMR(UTRAN/E-UTRAN)) |
Supported |
|
USSD Data download and application mode |
Not supported |
|
Terminal Profile Byte 24 (Class "i") |
Maximum number of frames supported |
0 |
Terminal Profile Byte 25 (Event driven information extensions) |
Event: Browsing status |
Not supported |
Event: MMS Transfer status |
Not supported |
|
Event: Frame Information changed |
Not supported |
|
Event: I-WLAN Access status |
Not supported |
|
Event: Network Rejection for GERAN/UTRAN |
Supported |
|
Event: HCI connectivity |
Not supported |
|
Event: Network Rejection for E-UTRAN |
Supported |
|
Multiple access technologies supported in Event Access Technology Change and PROVIDE LOCAL INFORMATION |
Not supported |
|
Terminal Profile Byte 26 (Event driven information extensions) |
Event: CSG Cell Selection |
Not supported |
Event: Contactless state request |
Not supported |
|
Terminal Profile Byte 27 (Event driven information extensions) |
- |
- |
Terminal Profile Byte 28 (Text attributes) |
Alignment left |
Not supported |
Alignment centre |
Not supported |
|
Alignment right |
Not supported |
|
Font size normal |
Not supported |
|
Font size large |
Not supported |
|
Font size small |
Not supported |
|
Terminal Profile Byte 29 (Text attributes) |
Style normal |
Not supported |
Style bold |
Not supported |
|
Style italic |
Not supported |
|
Style underlined |
Not supported |
|
Style strikethrough |
Not supported |
|
Style text foreground colour |
Not supported |
|
Style text background colour |
Not supported |
|
Terminal Profile Byte 30 |
I-WLAN bearer |
Not supported |
Proactive SIM: PROVIDE LOCAL INFORMATION (WSID of the current I-WLAN connection) |
Not supported |
|
TERMINAL APPLICATIONS |
Not supported |
|
"Steering of Roaming" REFRESH |
Supported |
|
Proactive SIM: ACTIVATE |
Not supported |
|
Proactive SIM: Geographical Location Request |
Not supported |
|
Proactive SIM: PROVIDE LOCAL INFORMATION (Broadcast Network Information) |
Not supported |
|
"Steering of Roaming for I-WLAN" REFRESH |
Not supported |
